DIMENSIONS
A public information display solution for your city can help tourists and citizens move more easily, find information more easily, visit places of interest without using a car and therefore without polluting. A solution that is extremely useful for citizens and that helps municipalities to offer a quality service with a greener urban ecosystem
LMS monitors are available in various sizes, ranging from 13.3” to 42”. They include several options, such as text-to-speech (TTS), long-lasting batteries, pole-top mounting system, webcam, etc. The following list represents our standard offer, but we can also evaluate the creation of special formats and customized combinations.
(*) Fonte: Perception of Waiting Time at Transit Stops and Stations – Authors: Yingling Fan, Ph.D.; Andrew Guthrie, MURP; David Levinson, Ph.D. – University of Minnesota

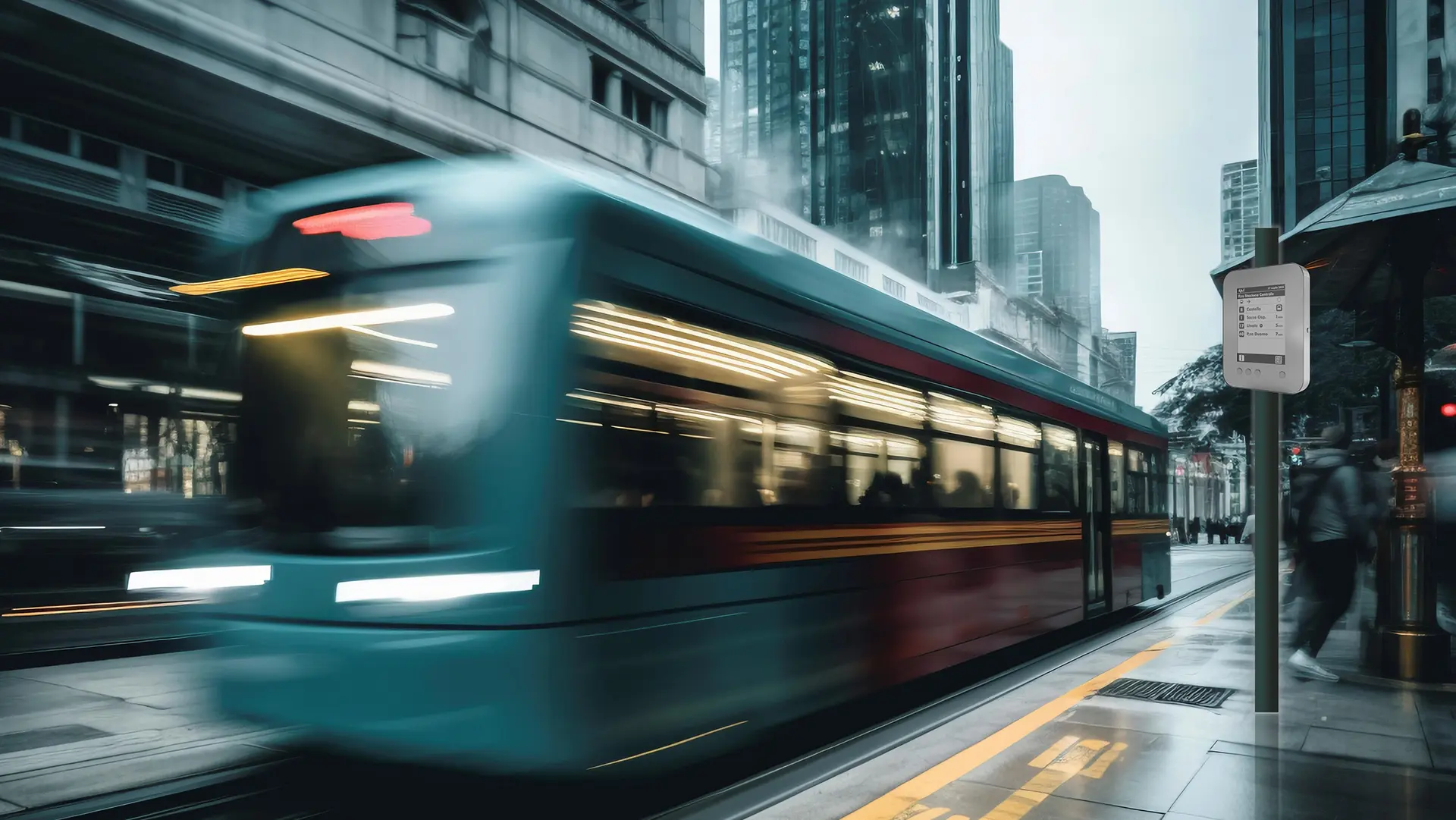

e-Paper displays are reflective, i.e. they use ambient light to display content, just like paper. In low light conditions, they use an additional light source that can evenly disperse light across the surface of the display, without bothering the eyes.

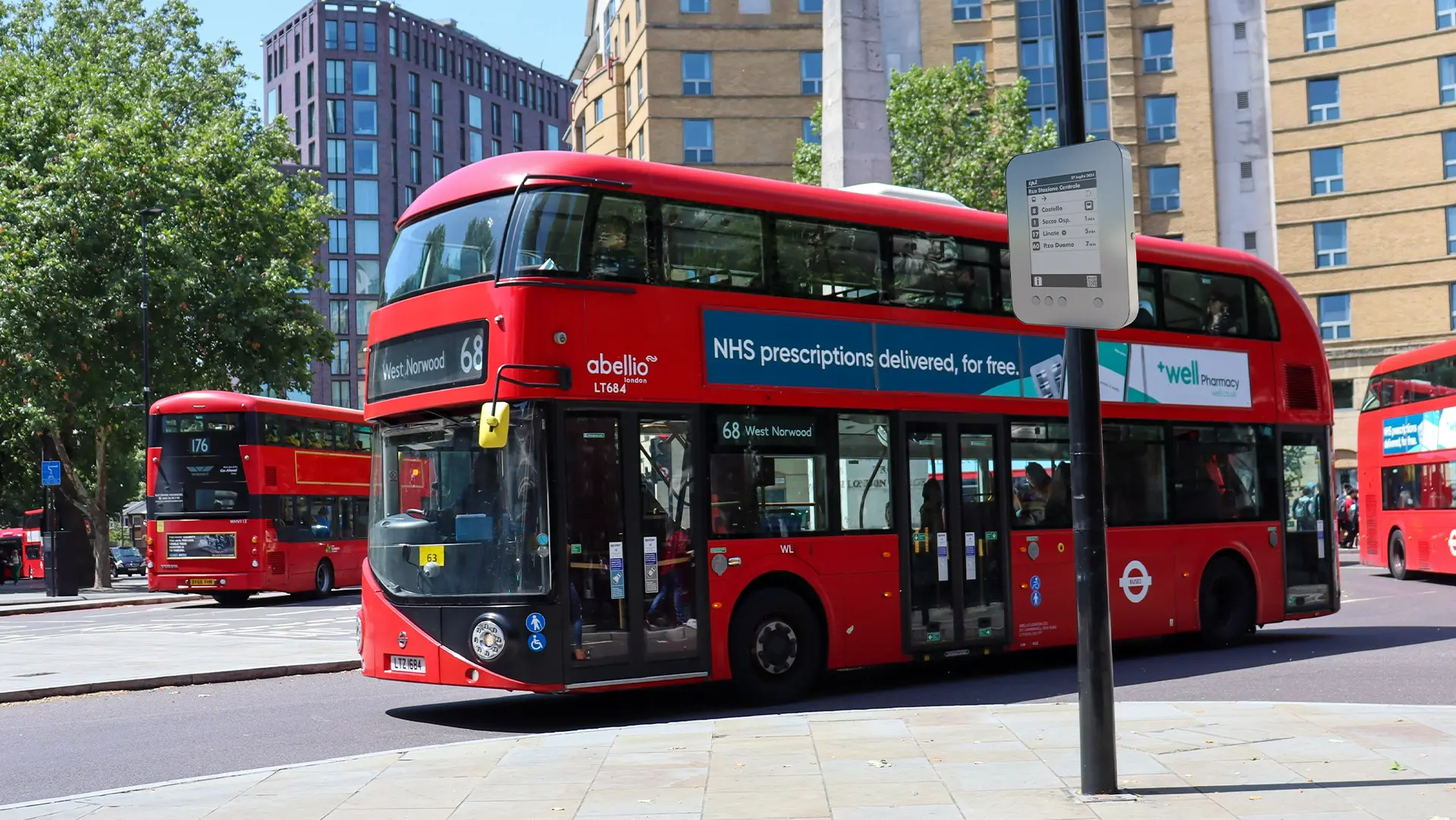

LMS is a passenger information display created to meet all the requirements of outdoor use in extreme weather conditions. Perfect visibility of images under direct sunlight at a maximum ambient temperature of +50°C and at low temperatures down to -20°C. Protection is also guaranteed against ferrous dust, heavy rain, snow from the Nordic countries and the salt present in seaside resorts.
The e-paper displays of the LMS line can be equipped with a long-life battery that can power the display for up to 3 years without the need for any additional power supply. If the long-lasting battery is combined with the use of a solar panel that performs the function of recharging the battery, the autonomy of the display thus rises up to 10 years. In this long period, no maintenance is required and when the battery runs out, it can be replaced quickly and easily on site.
The e-paper displays do not require electrical connections because they have a long-lasting battery internally that ensures an autonomy of up to 3 years. This makes on-site installation very quick and easy because you simply mount the monitor on the bus stop pole and configure it to connect to the software platform that provides real-time schedules.
Text to speech (TTS) is a technology that converts text to spoken audio. It can read aloud text that appears on public information displays to the public using natural voices derived from speech synthesis. Usability is through the use of special buttons located on the underside of the display or located in an external box. Text-to-Speech (TTS) technology can provide a more inclusive and accessible mode of communication for people with visual disability.
Thanks to the anti-reflective treatment, the glass is able to minimize the reflection of light that compromises the sharpness and visibility of the contents. It is standard on our outdoor products and is very useful in public information installations
Designed to protect the display from bumps and vandalism in outdoor environments. The front glass is 3+3 mm thick and has a special treatment to withstand impacts of 10 joules, generated by a weight of 4 kg with a fall of 20 cm. IK09 degree of protection
We provide a wide range of professional products with industrial manufacturing processes for 24/7/365 operation. ideal for airports, train stations, Digital OOH advertising networks and all environments where it is essential to display and ensure information clearly and reliably, without interruptions.

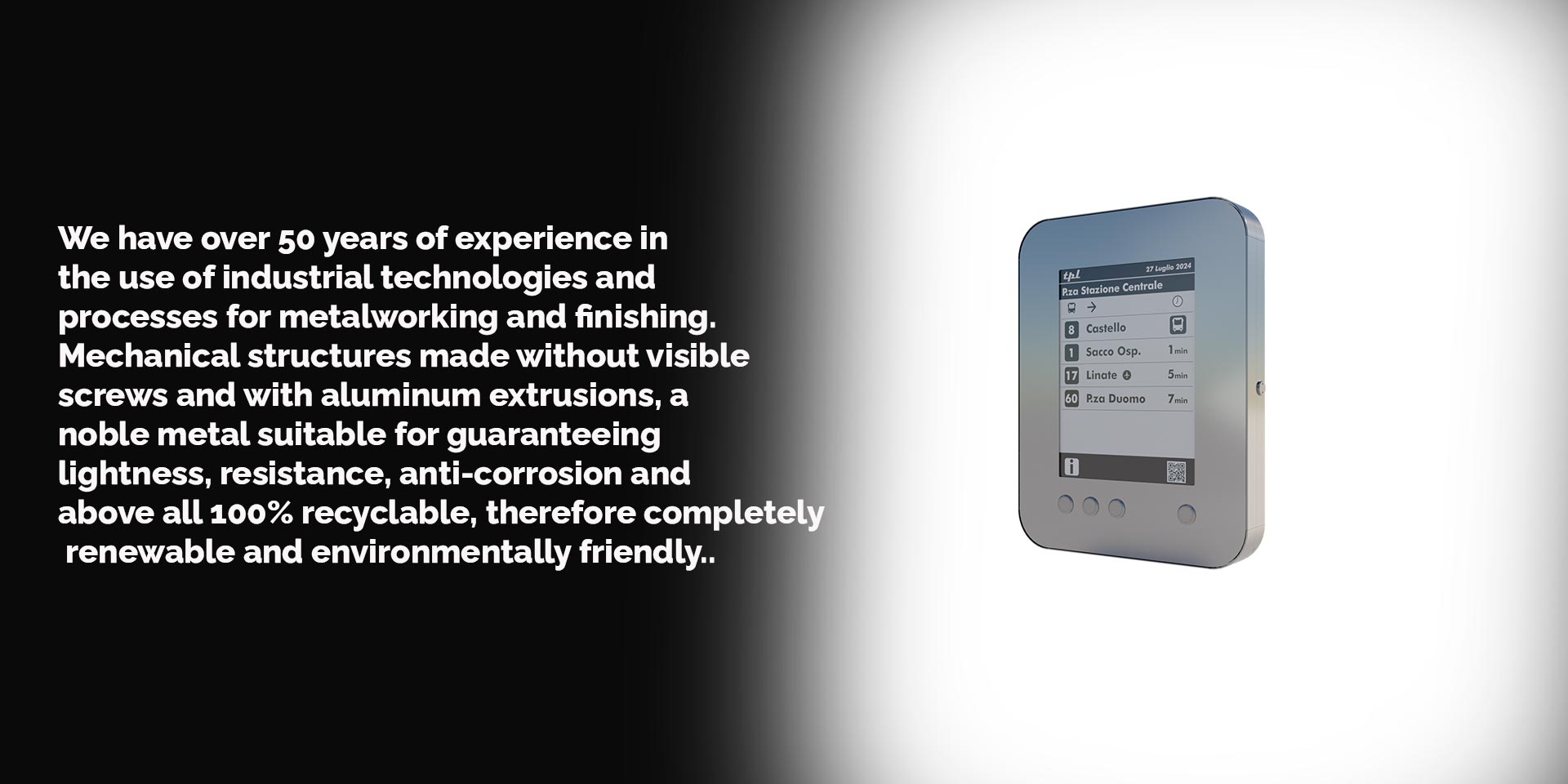

We have over 50 years of experience in the use of industrial technologies and processes for metalworking and finishing.
Mechanical structures made without visible screws and with aluminum extrusions, a noble metal suitable for guaranteeing lightness, resistance, anti-corrosion and above all 100% recyclable, therefore completely renewable and environmentally friendly.

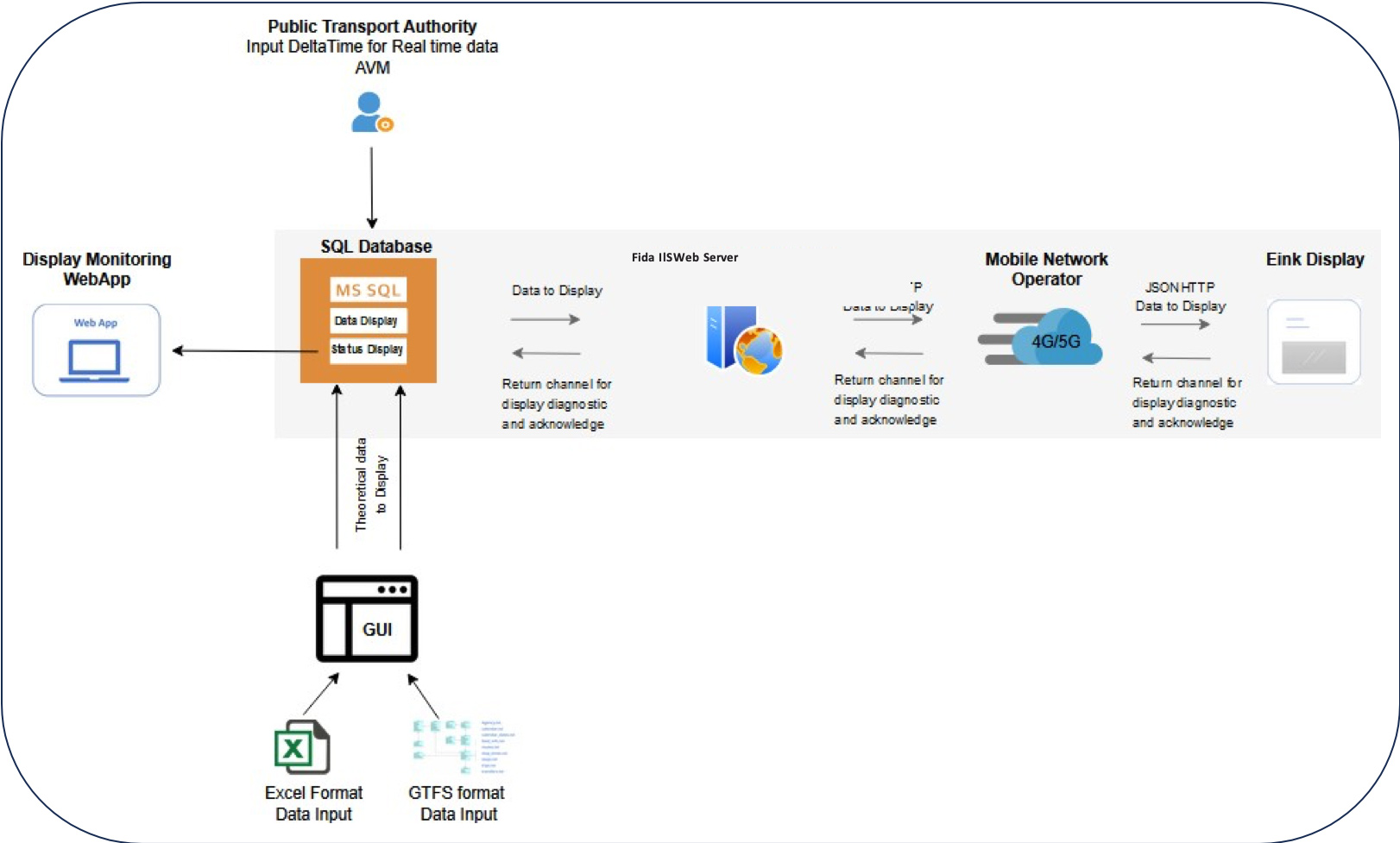

We have a solution that has no constraints with the use of a dedicated cloud server,
but it is based on an IIS (Internet Information Services) Web-Server service that the customer can decide to install on his own cloud server or physical server, together with the SQL database, which can be populated through a graphical interface.
The Local Public Transport Agency (who manages AVM) can also interface with this database for the provision of real-time data
The SQL database also represents the interface to the Local Public Transport Operator (TPL or Public Transport Authority) from which all real-time data comes. In the tables of theoretical data there will therefore be a DeltaTime field that the LPT / AVM Operator will have to add to the theoretical times to provide the Fida IIS WebServer and therefore the display with real-time data.
To make your projects unique, we provide a wide range of options that can help you customize your product to meet your specific needs
Available
Not Available
On project
Combining multiple options may require you to make a product with a different design
